Manufacturers, Supplier & Stockist in India

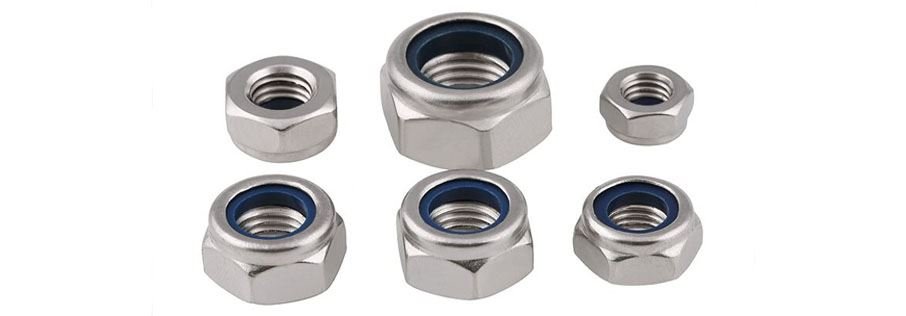

Caliber Enterprise is one of the leading Self Locking Nuts Manufacturers in India. This type of self-locking nut has a nylon ring insert at the top of its internal threads. When the nut is tightened onto a bolt or threaded rod, the nylon insert deforms and creates a thread interference. We offer a wide range of Nuts available in different materials. Each nuts has different specification and use.
One of the leading Suppliers and Dealers of various sorts of Self Locking Nuts Manufacturers in India is Caliber Enterprise. High-quality and different types of corrosion-resistant fasteners are produced by Caliber Enterprise. Our business provides Self Locking Nuts employing top-notch products made from premium raw resources. We are also a leading Lock Nuts Manufacturers in India.
Get Latest Price from the us
Self Locking Nuts Fastener - Specifications
| Specification | |||
|---|---|---|---|
| Material | Standards | Grades | |
| Nickel Alloy | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 | UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) | |
| Stainless Steel | ASTM / ASME A/SA 193 / 194 | B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4 | |
| Alloy Steel | ASTM / ASME A/SA 193 / 194 GR | B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M | |
| Duplex Steel | UNS NO. S 31803, S 32205 | Range: M10 TO M100, LENGTH UPTO 5 METERS | |
| Nonmetallic Materials: | Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105 | ||
| High-Temp Alloys | Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330 | ||
| Copper Base Alloys | Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles | ||
| Titanium | - | GR1, GR2, GR3, GR5, GR7, GR9, GR12, GR16, Gr23 so on | |
| Zirconium | - | R60702 | |
| Other metal | Tantalum, Niobium, Cobalt, Wolfram, Molybdenum | ||
| Titanium Damascus, Zirconium Damascus | - | - | |
We will explore some of the different types of Self Locking Nuts Supplier in India.
Self Locking Nuts Dimension Chart:
Dimension charts are used in various industries and fields to help users find the correct size or fit of a product, understand its dimensions
| Thread size d | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | - | M8x1 | M10x1 | M12x1,5 | M14x1,5 | M16x1,5 | M18x2 | M20x2 | M22x2 | M24x2 | ||
| - | - | - | - | M10x1,25 | M12x1,25 | - | - | M18x1,5 | M20x2 | M22x2 | - | ||
| P | 0,8 | 1 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2 | 2,5 | 2,5 | 2,5 | 3 | |
| da | min. | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| max. | 5,75 | 6,75 | 7,75 | 8,75 | 10,8 | 13 | 15,1 | 17,3 | 19,5 | 21,6 | 23,7 | 25,9 | |
| dw | min. | 6,9 | 8,9 | 9,6 | 11,6 | 15,6 | 17,4 | 20,5 | 22,5 | 24,9 | 27,7 | 29,5 | 33,2 |
| e | min. | 8,79 | 11,05 | 12,12 | 14,38 | 18,9 | 21,1 | 24,49 | 26,75 | 29,56 | 32,95 | 35,03 | 29,55 |
| h | max. = nominal size | 6,3 | 8 | 8,5 | 9,5 | 11,5 | 14 | 16 | 18 | 20 | 22 | 25 | 28 |
| min. | 6 | 7,7 | 8,2 | 9,14 | 11,14 | 13,64 | 15,3 | 17,3 | 19,16 | 20,7 | 23,7 | 26,7 | |
| m | min. | 4,4 | 4,9 | 6,14 | 6,44 | 8,04 | 10,37 | 12,1 | 14,1 | 15,1 | 16,9 | 18,1 | 20,2 |
| m´ | min. | 3,52 | 3,92 | 4,91 | 5,15 | 6,43 | 8,3 | 9,68 | 11,28 | 12,08 | 13,52 | 14,48 | 16,16 |
| s | max. = nominal size | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 |
| min. | 7,78 | 9,78 | 10,73 | 12,73 | 16,73 | 19,67 | 21,67 | 23,67 | 26,16 | 29,16 | 31 | 35 | |
| Weight (7,85 kg/dm3) kg/1000pcs | 1,4 | 3,1 | 3,2 | 6 | 11,7 | 16,6 | 21 | 37,8 | 51,6 | 68 | 86 | 127 | |
DIN 985 Self Locking Nut
| Thread d | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | - | - | - | M8x1 | M10x1 | M12x1,5 | M14x1,5 | M16x1,5 | M18x2 | ||
| - | - | - | - | - | - | M10x1,25 | M12x1,25 | - | - | M18x1,5 | ||
| P | 0,5 | 0,7 | 0,8 | 1 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2 | 2,5 | |
| da | min. | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 |
| max. | 3,45 | 4,6 | 5,75 | 6,75 | 7,75 | 8,75 | 10,8 | 13 | 15,1 | 17,3 | 19,5 | |
| dw | min. | 4,6 | 5,9 | 6,9 | 8,9 | 9,6 | 11,6 | 15,6 | 17,4 | 20,5 | 22,5 | 24,9 |
| e | min. | 6,01 | 7,66 | 8,79 | 11,05 | 12,12 | 14,38 | 18,9 | 21,1 | 24,49 | 26,75 | 29,56 |
| h | nominal= max. | 4 | 5 | 5 | 6 | 7,5 | 8 | 10 | 12 | 14 | 16 | 18,5 |
| min. | 3,7 | 4,7 | 4,7 | 5,7 | 7,14 | 7,64 | 9,64 | 11,57 | 13,3 | 15,3 | 17,66 | |
| m | min. | 2,4 | 2,9 | 3,2 | 4 | 4,7 | 5,5 | 6,5 | 8 | 9,5 | 10,5 | 13 |
| m´ | min. | 1,65 | 2,2 | 2,75 | 3,3 | 3,85 | 4,4 | 5,5 | 6,6 | 7,7 | 8,8 | 9,9 |
| s | nominal= max. | 5,5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 |
| min. | 5,32 | 6,78 | 7,78 | 9,78 | 10,73 | 12,73 | 16,73 | 18,67 | 21,67 | 23,67 | 26,16 | |
| Weight (7,85Kg/dm3) kg/1000pcs | 0,5 | 1 | 1,4 | 2,4 | 3 | 5,1 | 10,6 | 17,2 | 26 | 34 | 45 | |
| Thread d | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | |
| M20x2 | M22x2 | M24x2 | M27x2 | M30x2 | M33x2 | M36x3 | M39x3 | M42x3 | M45x3 | M48x3 | ||
| M20x1,5 | M22x1,5 | - | - | - | - | - | - | - | - | - | ||
| P | 2,5 | 2,5 | 3 | 3 | 3,5 | 3,5 | 4 | 4 | 4,5 | 4,5 | 5 | |
| da | min. | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 |
| max. | 21,6 | 23,7 | 25,9 | 29,1 | 32,4 | 35,6 | 38,9 | 42,1 | 45,4 | 48,6 | 51,8 | |
| dw | min. | 27,7 | 29,5 | 33,2 | 38 | 42,7 | 46,6 | 51,1 | 55,9 | 60,6 | 64,7 | 69,4 |
| e | min. | 32,95 | 35,03 | 39,55 | 45,2 | 50,85 | 55,37 | 60,79 | 66,44 | 72,09 | 76,95 | 82,6 |
| h | nominal= max. | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 |
| min. | 18,7 | 20,7 | 22,7 | 25,7 | 28,7 | 31,4 | 34,4 | 37,4 | 40,4 | 43,4 | 46,4 | |
| m | min. | 14 | 15 | 15 | 17 | 19 | 22 | 25 | 27 | 29 | 32 | 36 |
| m´ | min. | 11 | 12,2 | 13,2 | 14,8 | 16,5 | 18,2 | 19,8 | 21,5 | 23,1 | 24,8 | 26,5 |
| s | nominal= max. | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 |
| min. | 29,16 | 31 | 35 | 40 | 45 | 46 | 53,8 | 58,8 | 63,8 | 68,1 | 73,1 | |
| Weight (7,85Kg/dm3) kg/1000pcs | 65 | 75 | 100 | 162 | 212 | 317 | 415 | 499 | 628 | 771 | 998 | |
We are a leading Self Locking Nuts Manufacturers, Suppliers & Stockist in India
Application & Uses of Self Locking Nuts
Caliber fasteners can add value to end products in various industries by providing high-quality, reliable, and durable fasteners.
Automotive
Fertilizer
Power Plants
Aerospace
Self Locking Nuts Additional Information
All our Self Locking Nuts Fasteners meet International Quality Standards (IQS).
Our objective is to provide customers with quality products at competitive price and when required. Specializing in the manufacturing of Standard, non Standard fasteners as per clients specification/drawings. Our range of products satisfies every exacting Engineering need. The aim is to not just do things right, but finding ways of doing things better.
All Self Locking Nuts Fasteners are Quality Tested. We are ISO 9001:2018 certified company.
Each and every Self Locking Nuts Fasteners delivered under the name of Caliber Enterprise has been exclusively manufactured in India using the most up-to-date technology. time-tested, and skilled resources. At Caliber Enterprise we understand that high-quality is possible only when excellence is upheld at every stage of the process. We Believe in standing up to challenges for better product performance and services.
Get Latest Price from the us
Caliber Enterprise is a leading Dealers in India, Saudi Arabia, Kuwait, Oman, UAE, Mexico and more than 90+ categories. For our new clients, we ship to a variety of countries regularly.
We are the leading Self Locking Nuts Supplier in Indian cities. Caliber Fasteners is a renowned Fasteners supplier in Ahmedabad, Bangalore, Karnataka, Hyderabad, and other prominent cities across India. We currently have sales offices in more than 15 Indian States and more than 30+ Indian Cities. We also supply our Self Locking Nuts to various Indian cities.
